Stocked and readily available at Torstenson Glass
Fire-Rated, Impact Safety-Rated Wired Glass With Surface-Applied Film. Fire-Rating: 20-90 Minutes
WireLite NT is a 17/64” (6.8 mm) thick fire-rated and impact safety-rated glazing material, composed of wired glass and fire-rated surface-applied film. It is listed for use in doors, sidelites, transoms and borrowed lites.
Listings/ Standards
UL File Number: R13377
UL 9, UL 10B, UL 10C
NFPA 80, NFPA 252, NFPA 257
Features
• Fire-rated for up to 90 minutes with required hose stream test
• Impact safety-rated–meets ANSI Z97.1 and CPSC 16 CFR1201 (Cat. I and II)
• Fits in standard fire-rated hollow metal frames and doors
General Characteristics
Thickness – 17/64” (6.8mm)
Weight – 3.79 lb/sq. ft.
Visible Transmission (approx.) – 77%
• Withstands thermal shock
• Large sizes available
• May be lightly sandblasted or etched on the unfilmed side
• Protects from fire and impact on both sides of the glass
• Available as an IGU (Insulated Glass Unit)
• 3-year limited warranty

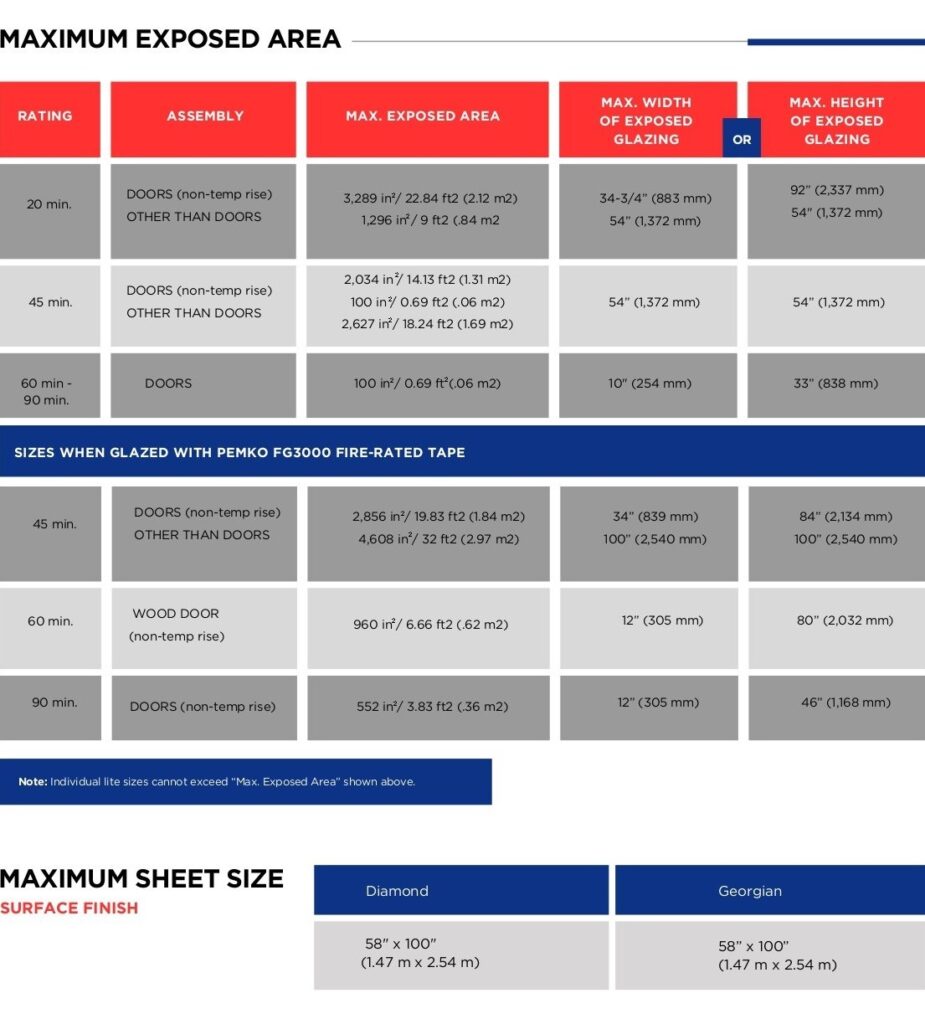

• Large sizes available when used with Pemko FG3000 glazing tape (see chart below)
